Automatic Industrial Metal Detector Gravity Fall Equipment System JZD-P16

Search Coil Diameter : customized

Record of product quantities : 100kinds of different product parameter

user : powder,granular products

sensitivity : other

Display : LCD Digital Display

the way of exlusion : sound and light alarm,air piracy exclusion automatically

Usage : Security Inspection

MOQ : 1

type : Pipeline metal detector

Model Number : JZD-P16

Product name : Food Metal Detector

raw material : SUS304/316

control panel : LCD display

operating frequency : Other

Price : $3,500

the diameter of transportation hopper : 50~150mm(customized)

Place of Origin : Guangdong, China

waterproof level : IP66

material : stainless 304 and 316

Contact Now

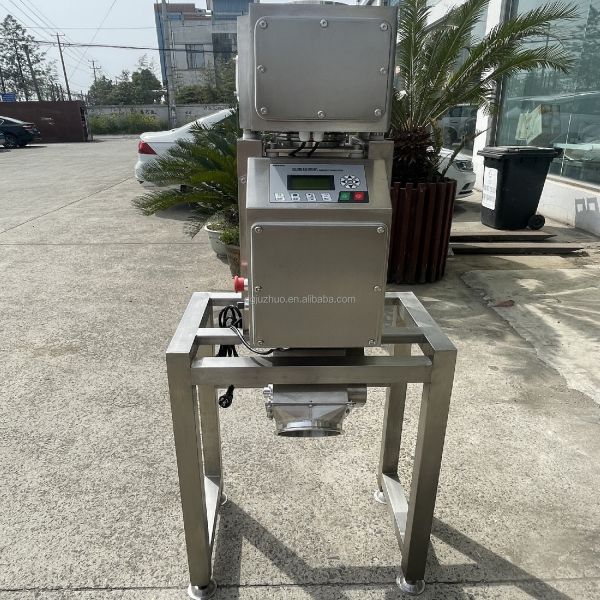

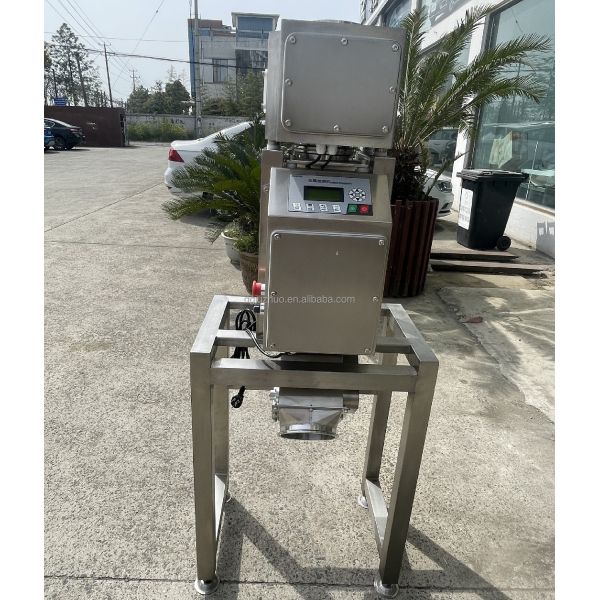

Industrial Metal Detector JZD-P16

Product Overview

The Industrial Metal Detector JZD-P16 is designed for reliable metal detection and separation in various industrial applications, featuring high precision and simple installation.

Applications

Food industry
Chemical industry
Pharmaceutical industry
Plastic industry
Packaging industry

Detection Capabilities

Detects and separates all types of metals including:

Copper
Iron
Zinc
Stainless steel
All other metals

Key Features

Detection method: Free-Falling body/Gravity
Suitable material: grain or powder
Separate ways: automatic separation
Advantage: high precision and simple installation

Technical Parameters

Operating voltage: 220 VAC (+/-10%, 50/60 Hz)
Input current: 80/160 mA
Ambient temperature: -10°C to 60°C
Case Material: Stainless Steel
Contact parts with material: PP plastic and PTFE
Compressed air: 4-8 kg, connected with 6-8 mm hose
Gas consumption: 0.6 liters each separate action
Level of protection: IP 54
Separation time: 0.2 - 2.5 seconds (No level adjustment)
Detection accuracy: 0-10 stepless adjustable (recommended scale 9)
Detection method: Falling body detection for plastic granules
Material characteristics: dry, no long-fiber, non-conductive, particles less than 8 mm

Specifications

Type (Internal Detection Tube Dia)	Capacity (l/h)	Detection Accuracy
80 type	5000 l/h	Iron/Stainless steel: 0.7 mm, Copper: 1.2 mm
100 type	10000 l/h	Iron/Stainless steel: 0.8 mm, Copper: 1.5 mm
150 type	20000 l/h	Iron/Stainless steel: 1.2 mm, Copper: 2.0 mm
200 type	40000 l/h	Iron/Stainless steel: 1.5 mm, Copper: 2.0 mm
250 type	65000 l/h	Iron/Stainless steel: 2.0 mm, Copper: 2.5 mm
