Pipeline Metal Detector Plastic Injection Molding Machine Separator JZD-P16

Usage : Security Inspection

Product name : Food Metal Detector

Price : $3,500

raw material : SUS304/316

user : powder,granular products

the way of exlusion : sound and light alarm,air piracy exclusion automatically

the diameter of transportation hopper : 50~150mm(customized)

Search Coil Diameter : 5cm, 12 cm, 8 cm, 10 cm, 15 cm, 18 cm, 20 cm, 25 cm

Record of product quantities : 100kinds of different product parameter

Display : LCD Digital Display

sensitivity : other

operating frequency : Other

Place of Origin : Guangdong, China

control panel : LCD display

waterproof level : IP66

IP Rating : Ip67

type : Pipeline metal detector

MOQ : 1

Model Number : JZD-P16

material : stainless 304 and 316

Contact Now

Pipeline Metal Detector Separator for Plastic Injection Molding Machine JZD-P16

Product Overview

The JZD-P16 Pipeline Metal Detector Separator is designed for integration with plastic injection molding machines to detect and remove metallic contaminants from plastic granules and powders.

Applications

Food industry
Chemical industry
Pharmaceutical industry
Plastic industry
Packaging industry

Key Functions

Detects and separates all types of metals including copper, iron, zinc, stainless steel, and other metallic contaminants.

Product Features

Detection method: Free-Falling body/Gravity
Suitable material: Grain or powder
Separate ways: Automatic separation
Advantage: High precision and simple installation

Technical Parameters

Operating voltage: 220 VAC (+/-10%, 50/60 Hz)
Input current: 80/160 mA
Ambient temperature: -10°C to 60°C
Case Material: Stainless Steel
Contact parts with material: PP plastic and PTFE
Compressed air: 4-8 kg, connected with 6-8 mm hose
Gas consumption: 0.6 liters per separation action
Level of protection: IP 54
Separation time: 0.2 - 2.5 seconds (non-adjustable)
Detection accuracy: 0-10 stepless adjustable (recommended scale 9)
Detection method: Free-falling plastic granules
Material characteristics: Dry, no long-fiber, non-conductive, particles less than 8 mm

Specifications

Type (Internal Detection Tube Dia)	Capacity	Detection Accuracy
80 type	5000 l/h	Iron/Stainless Steel: 0.7 mm, Copper: 1.2 mm
100 type	10000 l/h	Iron/Stainless Steel: 0.8 mm, Copper: 1.5 mm
150 type	20000 l/h	Iron/Stainless Steel: 1.2 mm, Copper: 2.0 mm
200 type	40000 l/h	Iron/Stainless Steel: 1.5 mm, Copper: 2.0 mm
250 type	65000 l/h	Iron/Stainless Steel: 2.0 mm, Copper: 2.5 mm

Product Gallery

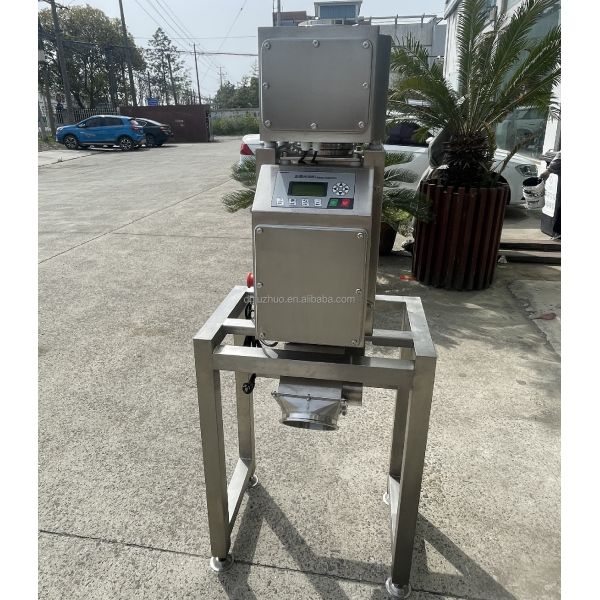

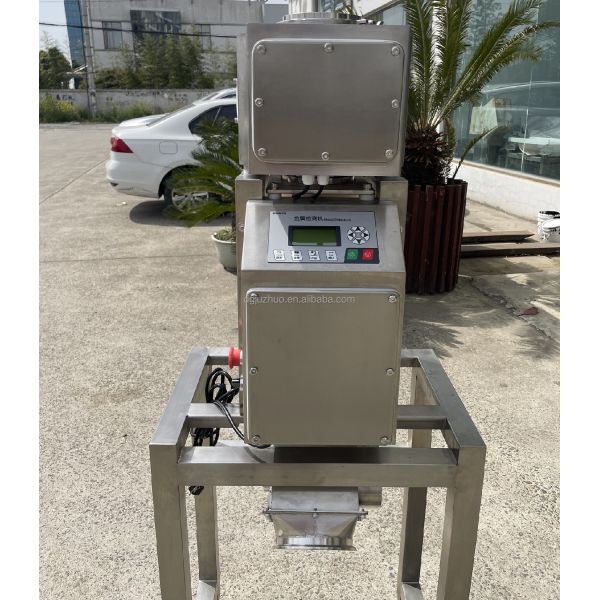

Pipeline Metal Detector Plastic Injection Molding Machine Separator JZD-P16
