Food Metal Detector Biscuit Bread Burger Confectionery Processing JZD-366

type : New

Belt COLOR : customized

raw material : stainless steel 304

waterproof : IP66

warranty : 1yeat

certification approval : CE,ISO9001,HACCP

MOQ : 1

conveyor load : 25kg(customized)

customized support : OEM, ODM, OBM

Model Number : JZD-366

Alarm : audible and visual alarm ,automatic stop

conveyor speed : 18m/minutes(adjustable)

Certification : CE,ISO9001

Brand Name : JUZHUO

Place of Origin : Guangdong, China

control panel : LCD

Contact Now

OEM Food Metal Detector for Biscuits / Bread / Burger / Confectionery / Food Processing Industry JZD-366
Product Overview

Model JZD-366 is an LCD display intelligent/digital metal detector featuring two-way signal detection circuit technology. It adopts advanced electromagnetic detection and digital signal processing technology, utilizing latest DDS (Direct Digital Synthesizer) and DSP (Digital Signal Processor) in hardware, combined with advanced detecting algorithm, self-study and full digital regulating function to ensure stable and dependable detecting capacity.

Applications

Model JZD-366 digital metal detector is primarily used for checking metal impurities in bakery products, pizza, hamburger, puree, sauce, vegetable tobaccos, and other applications requiring metal detection. It can operate in various challenging work environments including high temperature, low temperature, damp, dry, dust, dew, and other poor conditions.

Main Features
  • LCD display screen control panel with English and Chinese language options
  • Can detect impurities in products packaging with evaporating aluminum
  • Can record up to 100 different product parameters for easy operation when switching between different products
  • Automatic identification learning functions to efficiently overcome product material effects
  • Detection head adopts dual channel detecting circle from German detection technology with rectangle aperture (indivisible)
  • Control system - ADLINE microprocessor controller
  • Conforms to IFS standard with HACCP, CE & ISO 9001 certifications
  • Strong suppression for product effect of aquatic food products, frozen foods & pickled foods
  • Strong anti-interference & shock proof capabilities
  • Easily disassembled and conveniently cleaned
Technical Parameters
Parameter Specifications
Model JZD-366
Inspection Window Width (mm) 400 (customization available)
Inspection Height (mm) 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400
Detection Sensitivity - Fe (Φmm) ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0
Detection Sensitivity - Non-Fe (Φmm) ≥1.0 | ≥1.2 | ≥1.5 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5
Detection Sensitivity - 304SUS (Φmm) ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5
Alarm System Audible and visual alarm, automatic stop
Raw Material SUS304
Machine Size (mm) 160(L)cm × 90(W)cm × 100(H)cm (based on normal size)
Net Weight 330kg (based on normal size)
Electrical Source (Power) 110V/220V/380V 50Hz/60Hz, 90W
Conveyor Speed 25-30m/min (customizable according to customer requirements)
Conveyor Height 650mm±50mm (normal), customizable to customer needs
Note: The above sensitivity is judged by the machine without bearing any parts. Actual sensitivity may vary with product nature and temperature. Auto-rejection equipment can be installed according to customer requirements.

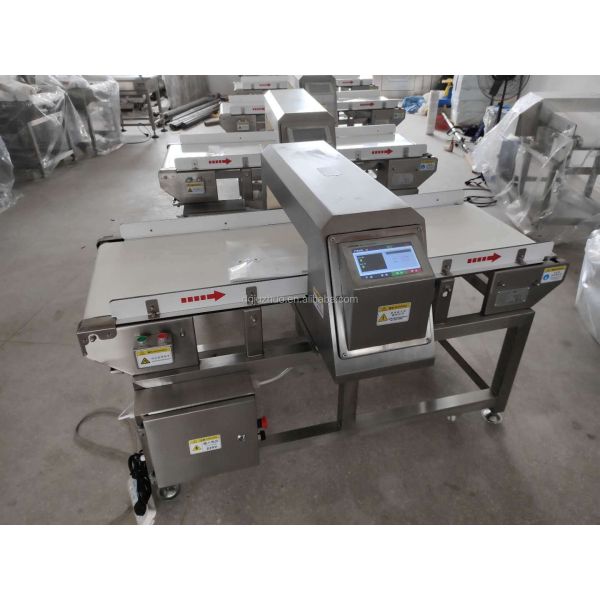

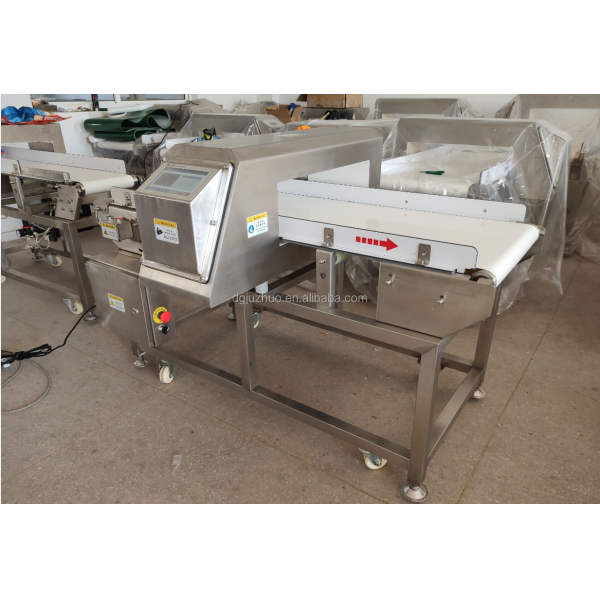

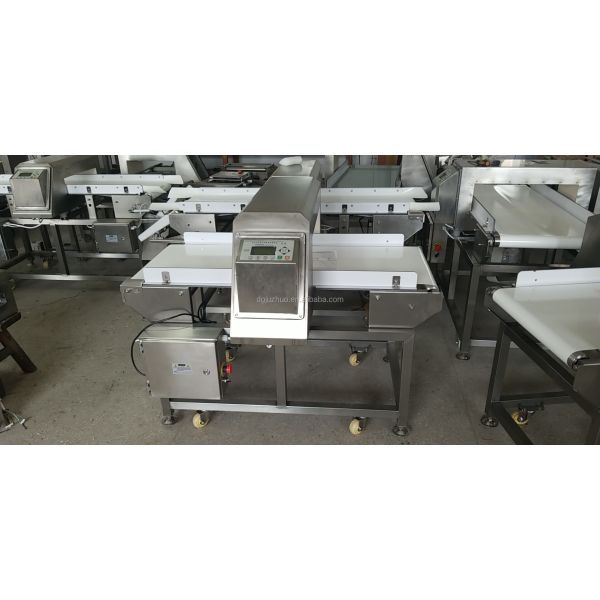

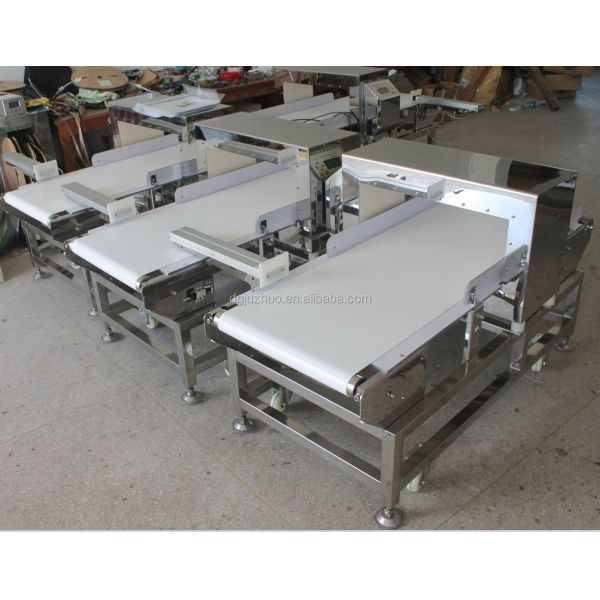

Product Images
