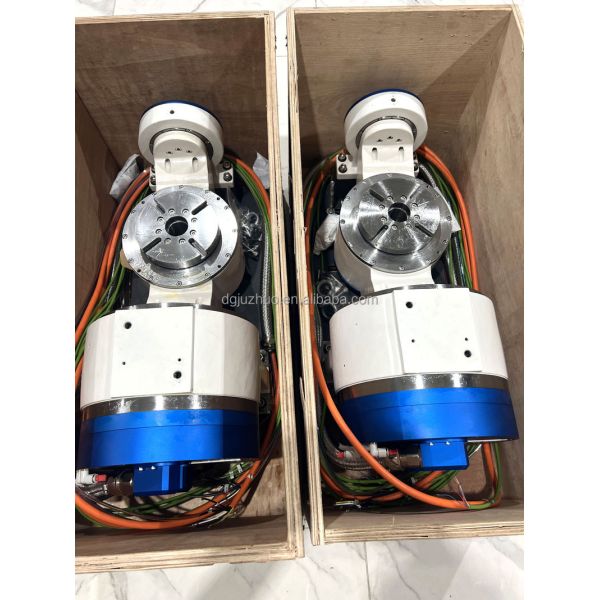

Direct Drive Torque Motor Cradle Five Axes 5axis Rotary Table with Ourth-axis Function and Five-axis Function Technical Service

Name: Direct Drive Torque Motor Cradle Five Axes 5axis Rotary Table with Ourthaxis Function and Fiveaxis Function Technical Service
Brand: Juzhuo
Price: 1 USD

Wholesale Direct Drive Torque Motor Cradle Five Axes 5axis Rotary Table with Ourth-axis Function and Five-axis Function Technical Service from china suppliers

video outgoing-inspection : Provided

Rated Current(A)(Tilting axis) : 17.5

Maximum speed(rpm)(Tilting axis) : 200

Rated Power(KW)(Tilting axis) : 5.3

Rated Torque(Nm)(Rotary axis) : 105

Maximum speed(rpm)(rotary axis) : 250

Rated Power(KW)(Rotary axis) : 2.2

Rated Torque(Nm)(Tilting axis) : 253

Voltage for Driver(V) : 220

Brand Name : Juzhuo

Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine, Drilling Machine, Boring Machine, turning machine, shaping machine, planning machine

Rated Current(A)(Rotary axis) : 8.5

Rated speed(rpm) : 200

warranty : 3 Years

MOQ : 1

weight (kg) : 150

Place of Origin : Guangdong, China

machinery test report : Provided

Contact Now

Direct Drive Torque Motor Cradle Five Axes 5-Axis Rotary Table with Fourth-Axis and Fifth-Axis Function Technical Service

Direct Drive Torque Motor Cradle Five Axes 5-axis Rotary Table with Fourth-axis Function and Fifth-axis Function Technical Service

Product Characteristics

Direct drive structure
High precision, high speed, long-term use without wear and tear
The rotary table can match with many control systems, such as Lynuc, HNC, SYNTEC and others. If the customer uses Fanuc, or Mitsubishi control systems, the encoder needs to be replaced
Position accuracy and repeat accuracy is Renishaw 2012 standard. Standard value needs to be transferred when using other standards

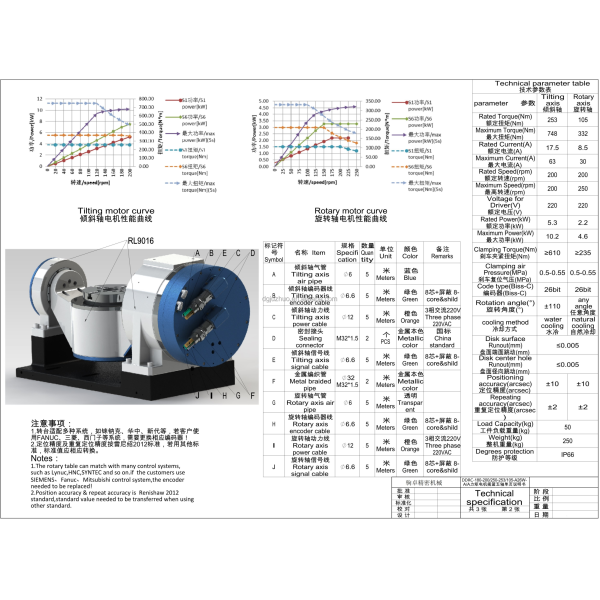

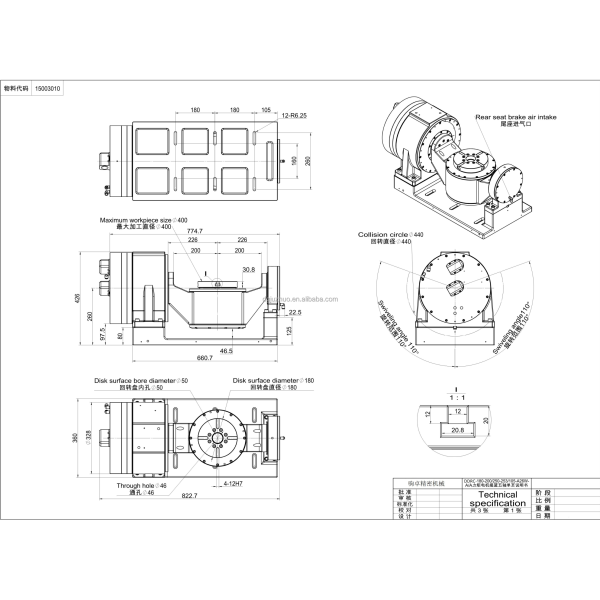

Technical Parameters

Direct Drive Torque Motor Cradle Five Axes 5axis Rotary Table with Ourth-axis Function and Five-axis Function Technical Service

Note: All technical specifications and performance data are based on Renishaw 2012 standards. Please consult with our technical service team for compatibility with specific control systems and alternative measurement standards.

Product Tags:

direct drive cnc rotary table

direct drive rotary table cnc
